The SURFACE HUB AXIS offers great orientation freedom thanks to its adjustable system. It allows the luminous flux to be directed precisely towards target areas.
Versatile and high-performing, the SURFACE HUB AXIS adapts to urban and architectural projects requiring flexibility and precision. Its surface mounting simplifies installation while ensuring a refined integration.
Symmetric optic
Angle 14°
Optical lens
Symmetric optic
Angle 28°
Optical lens

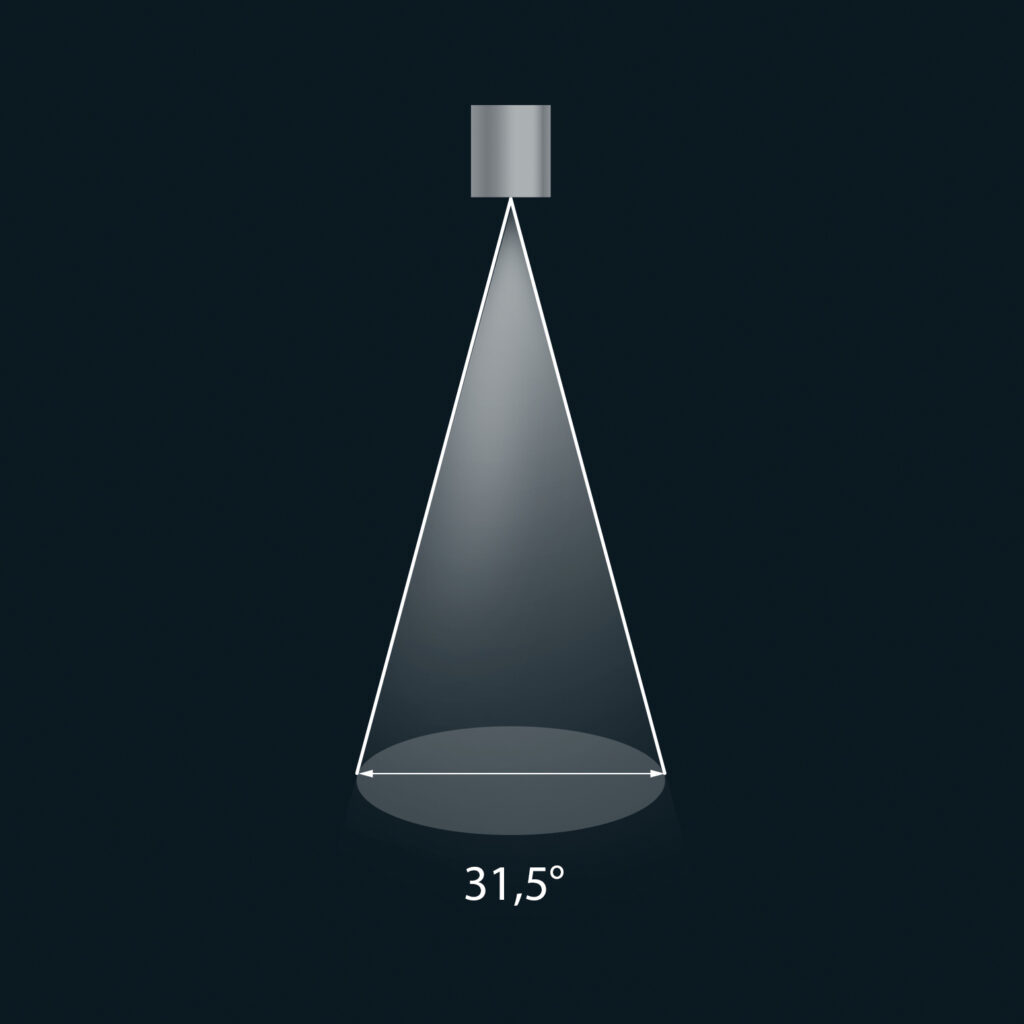

Symmetric optic
Angle 31,5°
Optical lens
Symmetric optic
Angle 42°
Optical lens
Elliptical optic
Angle 22 x 45°
Optical lens
Adjustable symmetric optic
Angle from 10 to 55°
Optical lens
Wattage :
8,5W
Colour temperatures :
2200/2700/3000/3500/
4000/4500/5000/5700K
Control :
1-10V / DALI / DMX
Specifications :
Anodised aluminium
IP 65 / IK10
Life time :
>100 000 h L90B10
Personalisation of the decorative ring with three available finishes: Black, Gold or Silver, to adapt the luminaire’s aesthetic to the project identity. Excluding the ZOOM Version.
Choice of Black or White finish for the luminaire body and catenary cables, ensuring harmonious aesthetic integration in each architectural project.
Choice of white colour temperature or LED colour to suit the specific requirements of the project and the desired lighting atmosphere.
